Antennas and Signal Distribution

Signal Distribution with GPSAV4

The GPSAV4 distributes the signal of a GPS antenna to up to four GPS satellite receivers. The integrated amplifier avoids distribution dissipation. The GPS connected to the output no.1 is used to supply power to the GPSAV4, so this output has to be connected steadily while the others could be left unconnected.

The distributor is installed in a plastic case with five type-N female connectors for input and outputs.

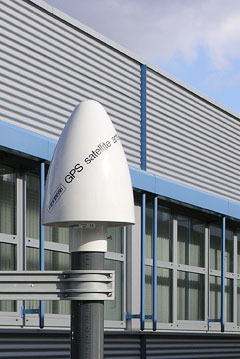

GPS Antenna - Converter Unit GPSANT

GPS reception can only be reliable if the antenna has a free view of the sky, therefore it needs to be installed at a suitable location, e.g. on a rooftop. The unit is remotely powered by the connected GPS receiver (via the antenna cable) and can be used only with GPS equipment from Meinberg.
