NTP Time Server with Reference Clock for Industrial Applications

Key Features:

• Synchronization of NTP and SNTP compatible clients
• Web based status and configuration interface
• Supported networking protocols: IPv4, IPv6, HTTPS, HTTP, SSH, TELNET, SCP, SFTP, FTP, SYSLOG, SNMP, PRP
• Alert-Notification system of status change by Email, WinMail, SNMP or an external connected display
• Full SNMP v1,v2,v3 support with own SNMP-daemon for status and configuration and SNMP Trap messages
• USB port for performing updates, lock front panel, and backup/restore configuration and log files.
• Antenna connected with up to 300 m of standard coaxial cable RG58

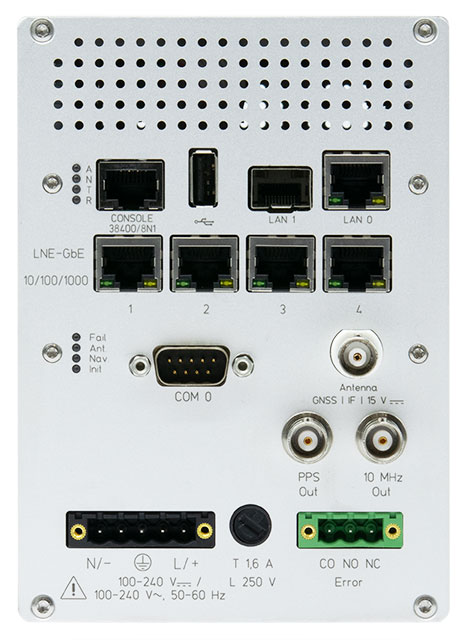

• 2 Network ports:1 x 10/100/1000Base-T RJ45 and 1 x 1000Base-T SFP Slot
  Option: 4 x 10/100/1000Base-T RJ45 - additional network interfaces

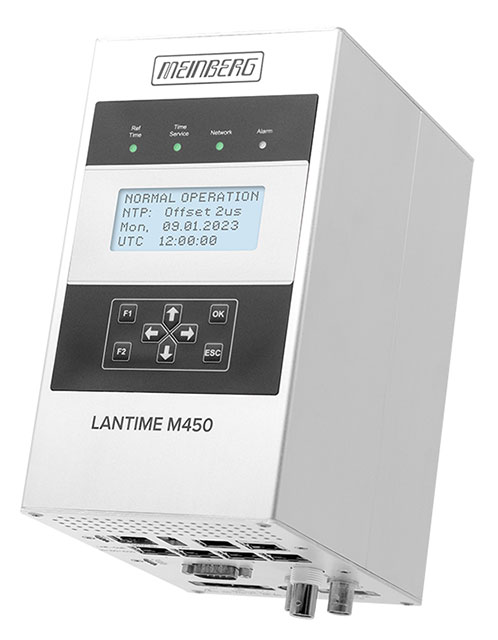

The LANTIME M450 Time Server has versatility similar to the M320 rackmount series, and provides accurate time to your network in a compact and full-featured DIN railmount package for industrial applications such as utility substations, process control, and automation systems. The successor to the LANTIME M400 includes an LC-Display and keypad and a wider variety of options than were available in those models.

The LANTIME M450 GPS is equipped with a high precision oscillator "TCXO" (look at oscillator options for details) as standard. The oscillator determines the holdover characteristics (e.g. when the GPS signal is disturbed or jammed). For applications with higher accuracy requirements there are several oscillator options available.

Because of its modular system architecture it is possible to equip a LANTIME M450 time server with a number of different reference time sources. Optionally several additional frequency-, serial string- and pulse outputs are available and by combining two (even different) time sources and redundant power supplies, high-availability systems are no problem.
