GPS170PCI: GPS Computer Clock for the PCI (PCI-X) Bus

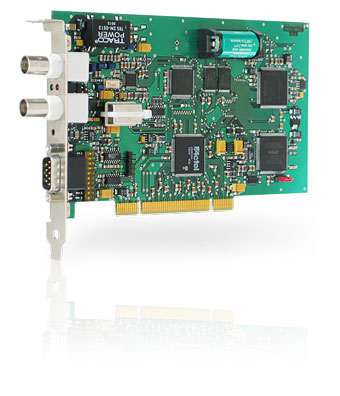

The GPS170PCI slot card is the professional solution to your standalone computer synchronization requirements. Its various outputs like IRIG, serial time string or 1PPS can be used to provide synchronization to other devices
This Product is replaced by GPS180PEX - Low Profile Clock (PCI Express)

Key Features:

  • PCI LOCAL BUS interface, 3.3V or 5V, 33MHz or 66MHz,
  • PCI-X compatible
  • 2 time trigger inputs
  • Pulses per second and per minute
  • RS232 interface
  • IRIG-B/AFNOR time code outputs
  • 3 programmable TTL outputsa
  • Plug and Play
  • DCF77-simulation
  • Antenna connected with up to 300m of standard coaxial cable RG58
  • Configurable time scale (UTC/local, GPS time, TAI)
  • Driver software for all popular operating systems
  • Flash-EPROM with bootstrap loader

The satellite controlled clock GPS170PCI is a plug-in board designed for computers with 3.3V or 5V PCI bus running with clock frequencies of 33MHz or 66 MHz. The rear slot cover integrates the antenna connector, the modulated timecode, two status LEDs, and a 9 pin sub-D male connector.

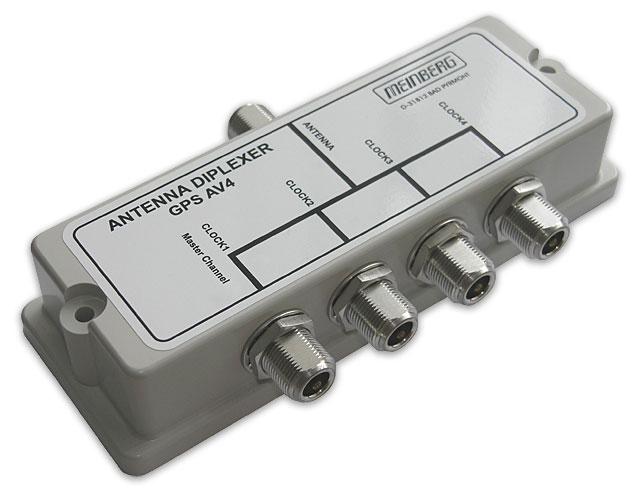

GPS Signal Distributor

The antenna/converter unit is connected to the receiver by a 50 Ohm coaxial cable with length up to 300m (when using RG58 cable). Power is supplied to the unit DC insulated across the antenna cable. Optionally, an over voltage protection and an antenna distributor are available. The antenna distributor can be used to operate up to 4 Meinberg GPS receivers using a single antenna/converter unit.
