TCR170PEX:
PCIe time code receiver and generator for computers

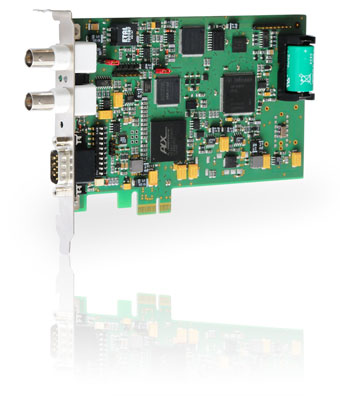

The board TCR170PEX is a standard height board for computers with PCI Express interface
This Product is replaced by TCR180PEX - PCIe time code receiver and generator

Key Features:

  • Generation of IRIG-B or AFNOR time codes
  • 2 time-trigger-inputs
  • PCI Express Interface
  • Plug and play
  • Programmable Pulse Outputs
  • Memory Mapped I/O time reads for high access rates
  • 2 RS232 interfaces
  • Status LEDs
  • Reception of time code formats IRIG A/B or AFNOR
  • Configurable time zone
  • Optional optical input and/or output for time codes
  • DDS frequency synthesizer
  • Driver software for all popular operating systems

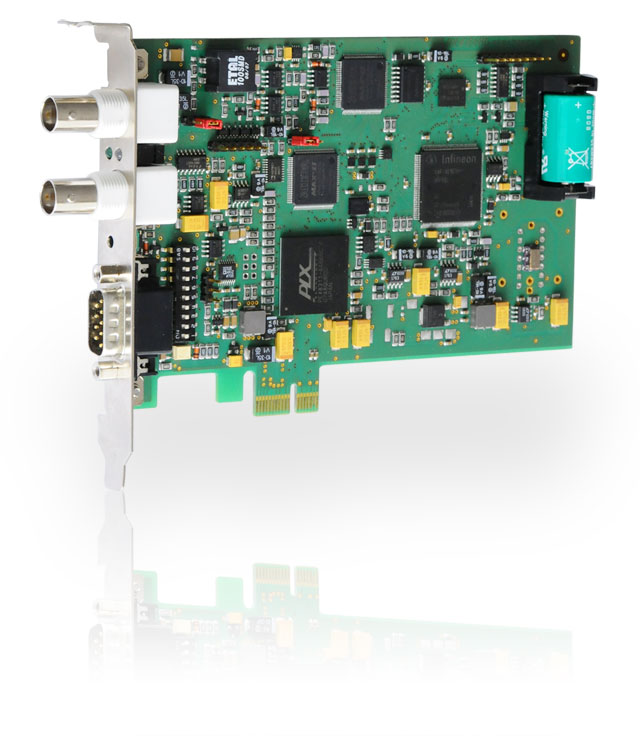

The board TCR170PEX is a standard height board for computers with PCI Express interface. The data transfer to the computer is done by using a single PCI Express Lane - x1 board. TCR170PEX serves to decode and generate modulated and unmodulated (AM and DC Level Shift) IRIG and AFNOR time codes.

AM-codes are transmitted by modulating the amplitude of a sine wave carrier, unmodulated codes by variation of the width of pulses.

As standard the module TCR170PEX is equipped with a TCXO (Temperature Compensated Xtal Oscillator) as master oscillator to provide a high accuracy in holdover mode of +/- 1 * 10E-8. Optionally an OCXO (Oven Controlled Xtal Oscillator) is available for better accuracy.

See Oscillator Options
