TCR511PEX: IRIG Time Code Receiver for Computers (PCIe)

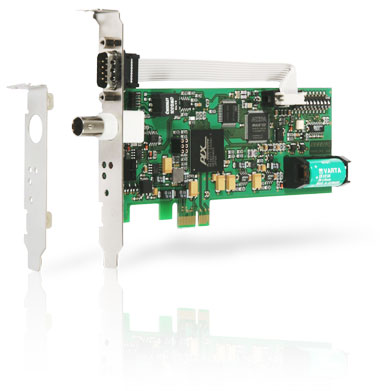

Reception of IRIG-A/B or AFNOR time codes for synchronization of computers and networks in PCI Express form factor, can be used in both low profile and regular PCIe slots.
This Product is replaced by TCR180PEX-EL - IRIG Time Code Reader

Key Features:

  • Reception of time code formats IRIG A/B or AFNOR
  • PCI Express Interface
  • Plug and play
  • Pulses per second and per minute
  • RS232 interface
  • Status LEDs
  • Buffered hardware clock
  • Configurabel time zone
  • Driver software for all popular operating systems

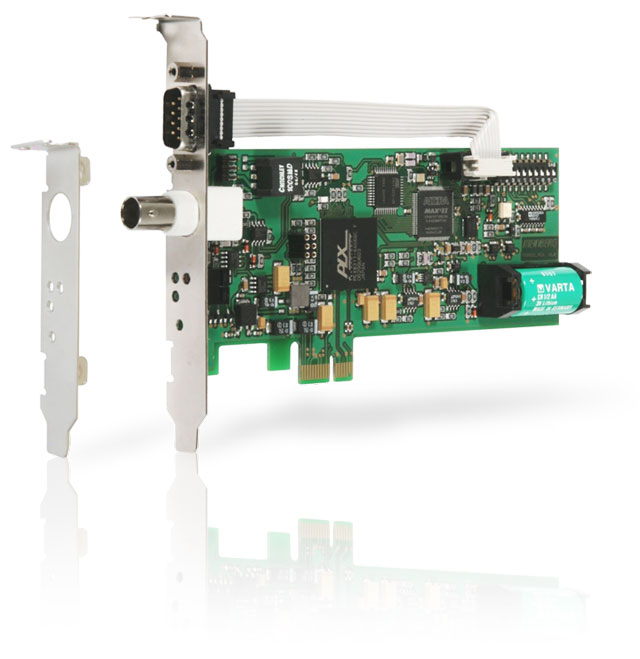

The board TCR511PEX is designed as a „low profile“ board for computers with PCI Express interface. The data transfer to the computer is done by using a single PCI Express Lane (x1 board).

The IRIG receiver is equipped with a standard height bracket. For installation in a „low profile“ computer, an adequate bracket can be mounted that is included in delivery. The I/O signals provided by a D-Sub connector are only available when using an additional bracket (not included) in this case.

TCR511PEX serves to receive and decode modulated (AM) and unmodulated (DC Level Shift) IRIG and AFNOR time codes. AM-codes are transmitted by modulating the amplitude of a sine wave carrier, unmodulated codes by variation of the width of pulses.
