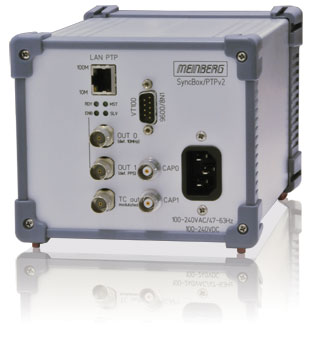

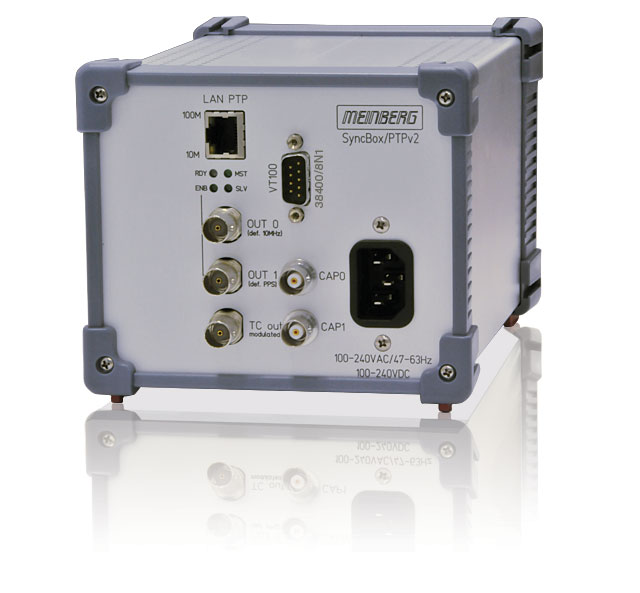

SyncBox/PTPv2:
IEEE 1588-2008 Compatible Ordinary Clock
This Product is replaced by SyncBox/PTPv2/MC - PTPv2 Ordinary Clock
Key Features:
- USB port for performing updates, lock front panel, and backup/restore configuration and log files.
- PPS, PPM and 10MHz output
- Generates several different modulated (AM) and unmodulated (DCLS) IRIG time code signals
SyncBox/PTP - a client device that is synchronized by PTP
The SyncBox/PTPv2 offers a number of legacy timing and frequency outputs like 1PPS, 10 MHz and
IRIG (DCLS/AM). It has two so-called Capture Inputs which can be used to timestamp
external events and can provide time synchronization to NTP/SNTP clients in your network.
The SyncBox is synchronized by a PTP Grandmaster and can be used as a time source for equipment that requires IRIG, PPS and/or serial time string.
