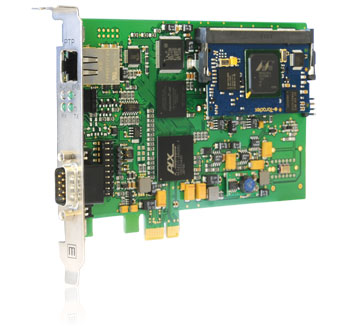

PTP270PEX:
IEEE1588-2008 slot card for computers (PCI Express)

The PTP270PEX provides sub-microsecond accuracy for computers. The card has been designed to add ultra precise time stamping capabilities to your data acquisition and measurement applications.
This Product is replaced by SyncBox N2X

Key Features:

  • PCI Express Interface
  • IEEE 1588-2008 (PTP V2) compatible ordinary clock
  • Pulse per second and 10 MHz output
  • Memory Mapped I/O time reads for high access rates
  • RS232 interface
  • IRIG-B/AFNOR time code generator
  • Plug and Play
  • Driver software for all popular operating systems

The PTP270PEX provides sub-microsecond accuracy for computers. The card has been designed to add ultra precise time stamping capabilities to your data acquisition and measurement applications. The PCI Express card can be installed in any single lane PCIe slot and offers an impressive selection of time, pulse and frequency outputs.

This PTP PCI Express slot card is the best choice for adding a highly accurate time base to your servers or workstations over a simple Ethernet connection. The time source for the card is a IEEE1588 grandmaster clock like the LANTIME M600/GPS/PTP. In the past, sub-microsecond accuracy in PCs could be achieved with GPS synchronized devices only but now with PTP there is no need for complex antenna cabling to every PC.

The card can be used as a stratum 0 reference time source for NTP and transforms any machine into a Stratum 1 NTP server without consuming additional physical space in your server room.
