The MSF600USB is a perfect alternative for synchronizing computer systems where no PCI slot or serial port is available for time synchronization.
The Meinberg LANTIME M320/MSF time server can be used in large parts of Europe to provide accurate time to networks of any size
Meinberg Product Page

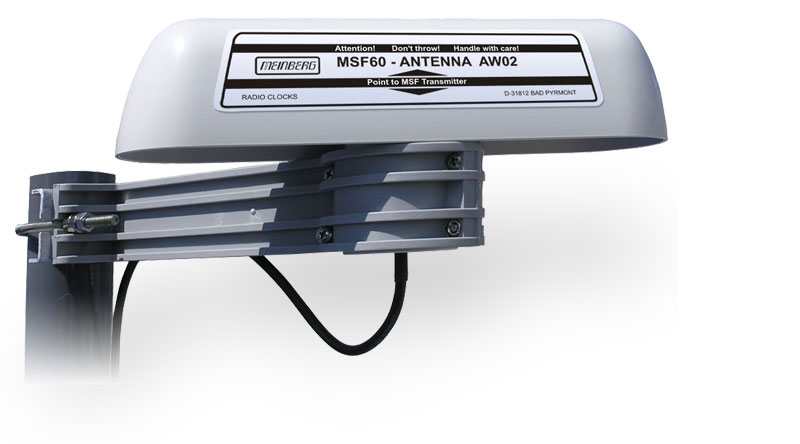

AW02-60:
60KHz MSF Outdoor Antenna
Key Features:
- Weather Resistant
- Temperature Resistant
- 360° Orientation
- Outdoor Mounting
- # Plastic Case
- Holder for Wall Mounting
MSF Antenna
The antenna of MSF-receivers includes a ferrite rod which must be aligned to the transmitter. For best reception the longitudinal side of the antenna must point to the Anthorn MSF transmitter (latitude 54O 55' N, longitude 3O 15' W). T
The antenna should be installed with a distance of at least 30cm to all metal objects because they would detune the antenna resonance. A distance of several meters to computer monitors must be kept. If they are running in a high screen resolution mode, their line frequency is close to the carrier frequency of the MSF transmitter, which would cause a worse or no reception.
For orientation the antenna is rotatable (360°). When the antenna cable is more than 500m lenght an antenna amplifier is needed.
Unbreakable plastic case, specially for outdoor installation (IP56) The rubber sealing protects the electronic, the ferrite rod and the winding against external influence.
