GPS161xHS:
Satellite Receiver for DIN Mounting Rail

Key Features:

• 6 channel GPS C/A-code receiver
• RS232 interface
• Antenna connected with up to 300m of standard coaxial cable RG58
• DC-insulated antenna circuit
• Remote control and monitoring with included PC-software (COM0)
• Aluminium profile case for 35mm DIN mounting rail
• Flash-EPROM with bootstrap loader

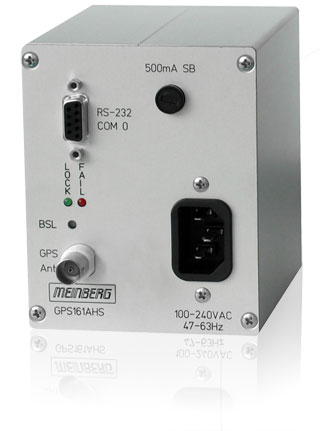

The satellite controlled clock GPS161xHS is designed for mounting on a DIN rail. The front panel integrates two LED indicators, a hidden push button, a DSUB- and a BNC-connector. The receiver is connected to the antenna/converter unit by a 50 O- coaxial cable with length up to 300 m. It is possible to connect up to four receivers to one antenna by using an optional antenna diplexer.

The variants of the module GPS161xHS are designed for following power supply options:

Power supply:

• GPS161DHS: 19 ... 72VDC
• GPS161AHS: 100 ... 240VAC, 47 ... 63Hz
• GPS161DAHS: 100 ... 240VDC
