Meinberg Product Page

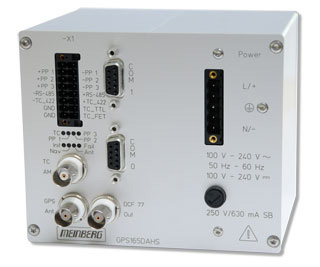

GPS165:
Satellite Receiver with integrated time code generator (DIN Mounting Rail)
Key Features:
- 12 channel GPS C/A-code receiver
- Programmable pulses and switching times,
- Time code or serial time string configurable for optocoupler outputs
- Two RS-232 interfaces, one RS-485 interface
- DCF77-simulation
- Modulated and unmodulated IRIG-B or AFNOR Outputs
- Meinberg GPS Antenna/Converter Unit connected with up to 300m of standard coaxial cable RG58
- DC-insulated antenna circuit
- Remote control and monitoring with included software mbgdevman (COM 0)
- Aluminium profile case for 35mm DIN mounting rail
- Flash-EPROM with bootstrap loader

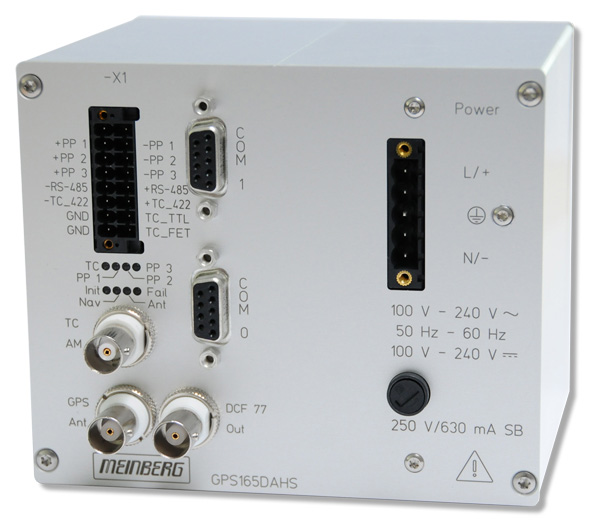

The GPS165 is designed for mounting on a DIN rail. The front panel integrates eight LED indicators, a terminal block, two DSUB and three BNC-connectors. The receiver is connected to the antenna/converter unit by a 50 Ohm coaxial cable with length up to 300 m (when using RG58 coax-cable). The antenna/converter unit is powered via the antenna cable. It is possible to connect up to four receivers to one antenna by using an optional antenna diplexer.
