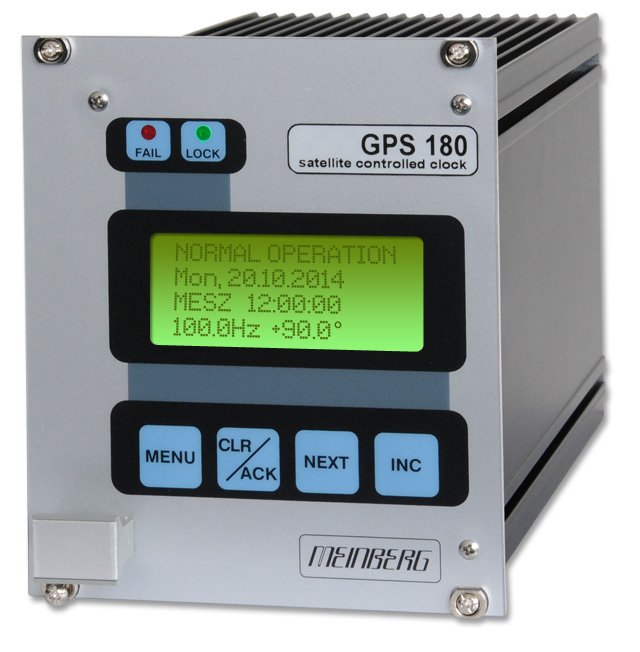

GPS Satellite Receiver with LC-Display and control panel

Key Features:

• 12 channel GPS C/A-code receiver
• Pulses per second and per minute
• 2 time trigger inputs
• 2 RS232 interfaces
• Alarm output
• DDS frequency synthesizer
• DCF77-simulation
• Meinberg GPS Antenna/Converter Unit connected with up to 300m of standard coaxial cable RG58
• DC-insulated antenna circuit
• Standard frequency outputs
• Flash-EPROM with bootstrap loader
• Optional up to 4 serial ports
• 4 programmable switching outputs
• timecode generator (IRIG-B, AFNOR)
• 5 MHz Frequency Output
• Including GPS antenna, 20m standard cable and manual on USB key

The first choice for a broad range of applications, including time and frequency synchronization tasks
The GPS module generate fixed and programmable standard frequencies with very high accuracy and stability. The pulse generator of the GPS satellite receiver generates pulses per second and per minute. Optional three programmable outputs are available.

The front panel integrates a LC-Display that shows information regarding the GPS receiver in different menus. In combination with four push buttons it is also used to setup all configurable parameters.

Up to four serial interfaces are available for sending time strings. These ASCII telegrams include information regarding time, date and status of the GPS receiver. The module provides two inputs for measurement of asynchronous time events. These capture events are shown on the LC-Display and can be read via a serial interface.
