M1000 - Modular Time Server with integrated GNSS Receiver

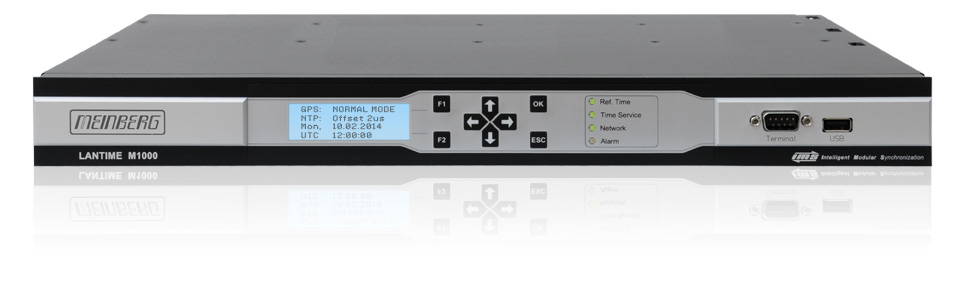

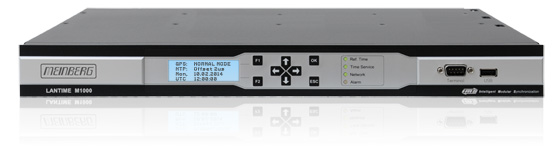

The LANTIME IMS M1000 already offers a broad range of input and output modules and can be customized to meet the special requirements of your application.
Get a Quote!

Key Features:

  • Optimized space usage
  • Synchronization of NTP and SNTP compatible clients
  • Web-based status and configuration interface (Demo), and console-based graphical configuration utility
  • IMS - Intelligent Modular System platform
  • Redundant power and receiver option (eg GPS / GLONASS combination)
  • Hot Plug
  • Arbitrary combinations of modules
  • The M1000 time server is available with a variety of additional output options: IRIG Time Code, frequency synthesizer and programmable pulse outputs illustrate some of the many expansion options for your NTP server
  • Up to 4 PTP (IEEE 1588-2008) modules
  • Up to 16 additional LAN ports

Versatile and modular solution for time and frequency synchronisation application in 1U housing.

The 1U chassis has two power supply slots, optional two clock module slots, a CPU slot and four (three in case of a second reference clock) slots for additional input and output modules. Adding a second clock module and a second power supply transforms the IMS M1000 into a fully redundant solution. Both wide range AC and a 20-60 V DC or 10-36 V DC power supply model can be mixed and matched as required.

M1000 - redundant receiver configuration
Figure: LANTIME M1000 in redundant configuration - with two satellite receivers (GPS / GNS) and two power supplies.

Scalable NTP Time Server System
All modules are hot-plug capable and the modules can be configured via the central web interface (from the CPU module). Almost infinite number of combinations of input and output modules are available to meet almost any synchronization task. Because of simple extension by upgrading the system with new modules the scalability of the M1000 system is ensured.

Supported networking protocols:

IPv4, IPv6, HTTPS, HTTP, SSH, TELNET, SCP, SFTP, FTP, SYSLOG, SNMP, PRP, Full SNMP v1,v2,v3 support with own SNMP-daemon for status and configuration and SNMP Trap messages

The LANTIME M1000 is equipped with high precision oscillator "OCXO SQ" as standard. The oscillator determines the holdover characteristics (e.g. when the GNSS signal is disturbed or jammed).

Oscillator options like "OCXO MQ", "OCXO HQ" and "OCXO DHQ" are available for higher requirements (look at oscillator options for details).

M1000 S-Chassis

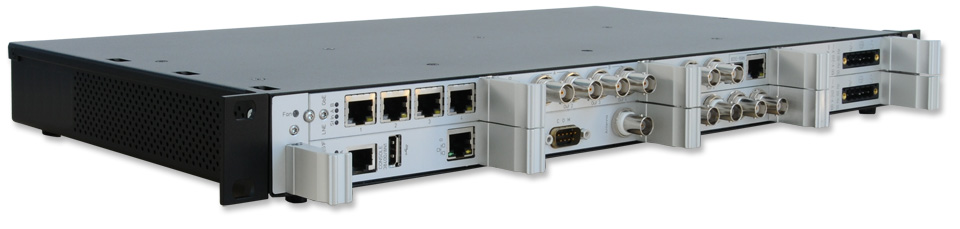

Figure: the M1000 is also available as an S-Chassis version with no front panel display and no function keys.

The modularity concept of the of the IMS Systems allows the LANTIME M1000 to be individually configured to take over specific roles in a network infrastructure by only adding one single module instead of implementing a completely new system into your network. The IMS System is therefore suitable for almost every application in many different industry sectors:

Power

  • Offers a mix of synchronization outputs for different devices like IEDs and SCADA systems
  • IEEE 1588 Grandmaster (multi-profile, incl. IEEE 1588-2008, IEEE C37.238-2011, C37.238-2017 IEC, 61588, IEC 61850-9-3 and IEC 62439-3 Annex B)
  • IRIG and AFNOR Time Codes (DCLS and AM) In/Out
  • (S)NTP Time server with HW time stamping

Telecom

  • GNSS (GPS, Galileo, BeiDou and/or Glonass) synchronised PRTC (compliant to ITU-T G.8272)
  • IEEE 1588 Grandmaster (multi-profile, incl. ITU-T G.8275.1, ITU-T G.8275.2 and 8265.1)
  • E1/T1 BITS and Clock In/Out (ITU-T G.703)
  • 2048 unicast clients at full rate
  • Synchronous Ethernet In/Out
  • For all areas of a mobile backhaul network: core, metro or access levels

Finance

  • MiFID II Compliance (a timestamping accuracy of better than 100 microseconds)
  • PTP and NTP Client Monitoring and Auditing
  • Highly accurate and reliable synchronization of computer systems in financial applications
  • Combines PTP Grandmaster (multi-profile, incl. Default, Hybrid / Enterprise) and NTP Server with 10 ns time stamp accuracy
  • DSCP and IEEE 802.3p QoS

Broadcast

  • Can easily be integrated in hybrid environments, as well as in All-IP scenarios
  • Sync in SMPTE ST 2110 All-IP infrastructures, which use the PTP profile SMPTE ST 2059-2

    • Video Formats:
    PAL (VITC Support)
    NTSC Black Burst

    Video Signals:
    HD/SD Video Syncs
    (Tri-Level/Bi-Level Sync)
    H-Sync and V-Sync

    Audio Signals:
    Programmable word clock rates between 24Hz – 12.288MHz
    AES11-2003 (DARS)
