M4000 - Ultra-Versatile Platform for Telecom Synchronisation Application

Key Features:

• Optimized for ETSI Rack (300mm / 21 inches) or 19 inch Rackmount
• Carrier Grade NTP Time Server with Hardware Time Stamping
• SyncE - Synchronous Ethernet In/Out
• Web GUI, CLI, SNMP, RADIUS, TACACS+
• GBit PTP Interface (SFP/RJ45)
• GNSS (GPS / GLONASS / Galileo / BeiDou) synchronized PRTC (compliant to ITU-T G.8272)
• Up to 10 PTP (IEEE 1588-2008) modules
• Redundant power and receiver option (eg GPS / GLONASS combination)
• IEEE 1588 Grandmaster (multi-profile, incl. ITU-T G.8275.1 and G.8265.1)
  - E1/T1 BITS and Clock In/Out (ITU-T G.703)
  - 1PPS In/Out
  - 10 MHz In/Out
  - PTP and NTP Input
• The M4000 time server is available with a variety of additional output options: IRIG Time Code, frequency synthesizer and programmable pulse outputs illustrate some of the many expansion options for your NTP server
• Up to 24 additional LAN ports

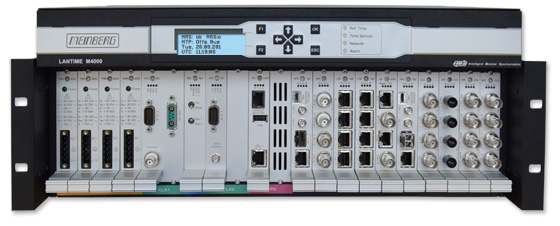

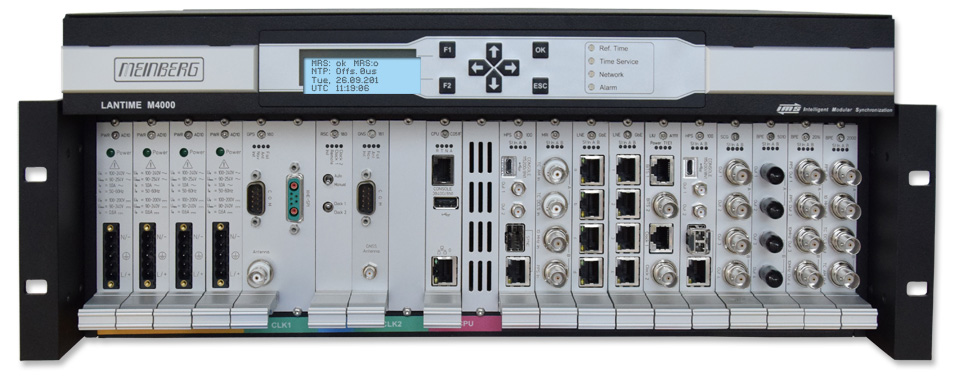

Versatile and modular time and frequency synchronisation platform in 4U rackmount chassis.

The Meinberg LANTIME M4000 has been designed to fulfill the synchronization requirements of modern 4G/5G/LTE networks. It is capable to act as a Primary Reference Time Clock (PRTC) and, because of its unmatched flexibility, can be deployed in different scenarios. The modularity of the IMS platform (Intelligent Modular System) allows the M4000 to be configured for all areas of a mobile backhaul network: in the core, metro or access network areas.

ITU-T Profiles
The PTP implementation support both ITU-T profiles, ITU-T G.8265.1 for frequency and ITU-T G.8275.1 for frequency and phase. This allows to provide accurate frequency and phase synchronization over packet networks to all network elements requiring synchronization, including 2G/3G/4G base stations as well as LTE advanced networks. The M4000 can act as a Telecom Grandmaster for hundreds of clients.
