VP100/20:

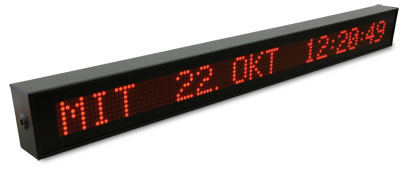

LED Large Display - serial or network connected

Key Features:

• Stand Alone Clock
• 20 mA Interface
• 50mm LED Display for Time and Date
• RS232 interface

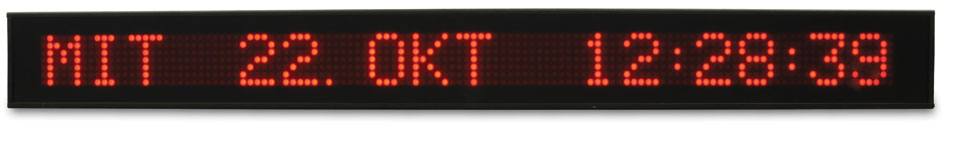

The large display VP100/20 is a 50mm hight LED matrix display that shows time and date 20 character wide as follows: day of the week, day of month, month, hours, minutes and seconds. It can be driven as a free running stand alone clock or as a radio clock with integrated DCF77 receiver.

The DCF variant provides automatic changeover of daylight saving. In case of supply voltage failure the on board RTC keeps the time based on XTAL for at least 10 years. Time and Date can be displayed in different languages. The wall mounted housing of the VP100/20 is made of plastic coated steel sheet.

The power connector, the antenna input and the RS232/20mA interfaces provided by VP100/20 are accessible via connectors in the rear panel of the case.

After connecting the power supply the displayed time/date can be set by the two buttons in the rear panel of the case. The accuracy of the time depends on the precision of the internal quartz base.

An automatic changeover of daylight saving can be programmed
