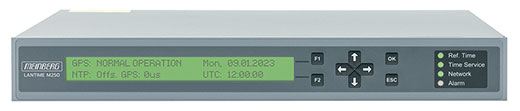

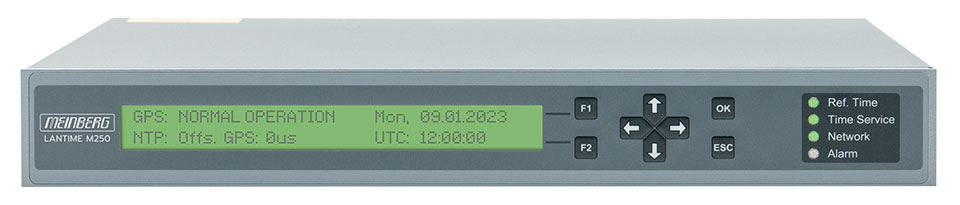

LANTIME M250/GPS:
Compact NTP Time Server with GPS Reference Clock
Key Features:
- Synchronization of NTP and SNTP compatible clients
- Web based status and configuration interface and console based graphical configuration utility
- Supported networking protocols: IPv4, IPv6, HTTPS, HTTP, SSH, TELNET, SCP, SFTP, FTP, SYSLOG, SNMP
- USB port for performing updates, lock front panel and backup/restore configuration and log files.
- Antenna connected with up to 300 m of standard coaxial cable RG58
LANTIME M250 time servers can be installed to provide accurate time to small and medium sized computer networks. This entry level time server synchronises all systems either NTP- or SNTP-compatible utilizing a built-in Meinberg GPS radio clock as its primary reference time source.
The LANTIME M250 GPS is equipped with a high precision "TCXO" oscillator. The oscillator determines the holdover characteristics (e.g. when the GPS signal is disturbed or jammed).
MEINBERG Oscillator Options
