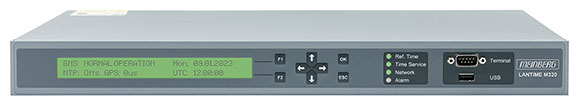

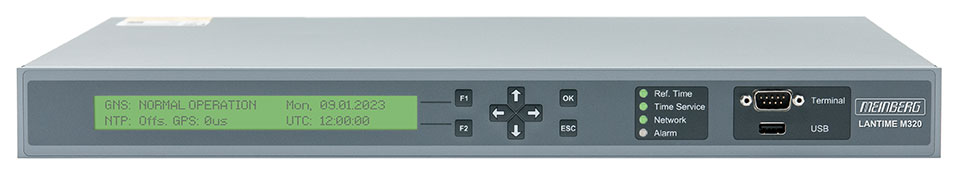

LANTIME M320/GNS:
NTP Time Server with integrated GNSS receiver for stationary and mobile applications

Key Features:

• µ-Blox GNSS receiver module (C/A Codes)
• Multi GNSS L1 antenna with 10 m coax cable Belden H155
• Web based status and configuration interface and console based graphical configuration utility
• Network interfaces: 2 x 10/100 MBit with RJ45 connector
  Options:
  up to 4 x additional 10/100 MBit with RJ45
  up to 2 x additional 100 MBit with fibre optic SC connector, duplex
  up to 3 x 10/100/1000 MBit with RJ45 jack
• Pulse Per Second (PPS), TTL level output
• 10 MHz frequency output (TTL, Sine)

The Multi GNSS receiver is a central clock module for the Meinberg NTP Time Server platform, which can use an external antenna to receive GPS, Galileo, GLONASS and BeiDou satellite signals, decode them and use the signals as a reference source for the integrated, oscillator-based hardware clock.

The integrated GNSS receiver requires an external antenna. It can be configured to use GPS, Galileo, Beidou and GLONASS. The configuration allows the user to select one of these sources to be used exclusively or a combination with up to three of these sources:

• GPS
• GLONASS
• BeiDou
• GPS + GLONASS
• GPS + BeiDou
• GPS + Galileo
• Galileo + GLONASS
• Galileo + BeiDou
• GLONASS + BeiDou
• GPS + Galileo + GLONASS
• GPS + Galileo + BeiDou

Receiver:
72 channel GPS / Galileo / GLONASS / BeiDou receiver
Satellite signals: L1 C/A; E1-B/C; L1OF; B1
Antenna connector: SMA

Type of Antenna:
40 dB Multi GNSS L1 Antenna with Integrated Lightning Protection for GPS, Galileo, GLONASS and BeiDou signals. The antenna can be connected with up to 70m of Coax Cable type Belden H155.
