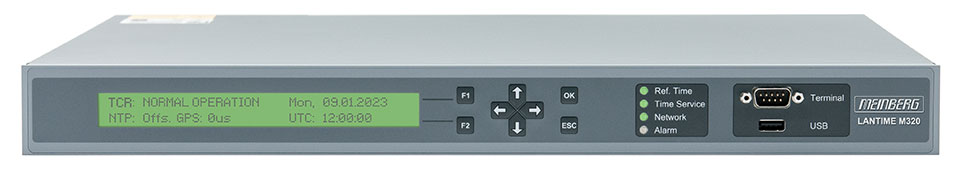

LANTIME M320/TCR:
IRIG Time Server with Time Code Receiver

The Meinberg LANTIME M320/TCR IRIG time server provides accurate time to networks of any size. It synchronises all systems either NTP- or SNTP-compatible and comes with a built-in Meinberg TCR module which decodes a IRIG/AFNOR signal from any compatible time code generator. A highly stable and precise oscillator is capable of bridging failures or a temporary loss of the IRIG signal.

The LANTIME M320/TCR Network Time Server combines a Time Code Receiver module with an embedded Linux computer.

Because of its modular system architecture it is possible to equip a LANTIME time server with up to two additional ethernet ports and a number of different reference time sources. Optionally several additional frequency-, serial string- and pulse outputs are available. Besides that two oscillators ensure fantastic holdover characteristics (e.g. when the IRIG/AFNOR signal is disturbed or not available): the reliable temperature controlled base model (TCXO) and the excellent oven controlled OCXO HQ.
