LANTIME M320/GPS:
NTP Time Server with integrated GPS radio clock

NTP Time Server for medium and large networks. Stratum 1 Time Server
Get a Quote!

Key Features:

  • Web based status and configuration interface and console based graphical configuration utility
  • USB port for performing updates, lock front panel, and backup/restore configuration and log files.
  • Antenna connected with up to 300 m of standard coaxial cable RG58
  • Network interfaces: 2 x 10/100 MBit with RJ45 connector
    Options:
    up to 4 x additional 10/100 MBit with RJ45
    up to 2 x additional 100 MBit with fibre optic SC connector, duplex
    up to 3 x 10/100/1000 MBit with RJ45 jack

The Meinberg LANTIME M320/GPS time server synchronises all systems either NTP- or SNTP-compatible and uses a built-in Meinberg GPS radio clock as its reference time source. A highly stable and precise oscillator is capable of bridging interferences or a temporary loss of reception.

The LANTIME M320/GPS is equipped with high precision oscillator „TCXO“ as standard. The oscillator determines the holdover characteristics (e.g. when the GPS signal is disturbed or jammed). For applications with higher accuracy requirements there are several oscillator options available.

M320 LC Display

A large LC display shows the state of the internal GPS receiver and the NTP subsystem. Three LEDs (green/red) indicate the status of the three main components: Reference Time (GPS), Time Synchronization Service (NTP) and Network (Link status). A fourth red LED is labelled ALARM and can be configured to signal any event that is covered by the notification handling routines.

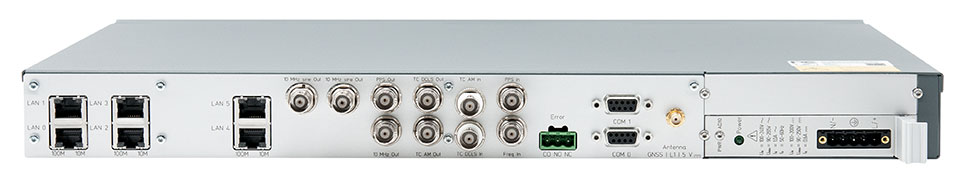

LANTIME M320/MRS with GPS Receiver - Rear View

Because of its modular system architecture it is possible to equip a LANTIME M320/GPS time server with a number of different reference time sources. Optionally several additional frequency-, serial string- and pulse outputs are available and by combining two (even different) time sources and redundant power supplies, high-availability systems are no problem.

Scope of Supply

Each LANTIME M320 GPS will be delivered with a MEINBERG GPS Antenna/Converter unit mounted in a waterproof plastic case, mounting kit and 20 m (65.6 feet) of RG58 coax cable, and mains connection cable with US-or Europeen power supply plug.
