LANTIME M100/GPS:
NTP Time Server with GPS Reference Clock for DIN Rail Installations

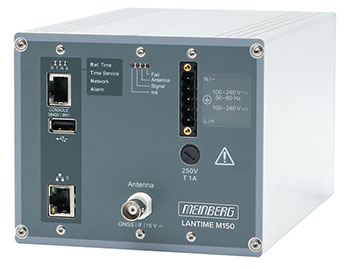

NTP Time Server with GPS Reference Source
Get a Quote!

Key Features:

  • Synchronization of NTP and SNTP compatible clients
  • Web based status and configuration interface and console based graphical configuration utility
  • Supported networking protocols: IPv4, IPv6, HTTPS, HTTP, SSH, TELNET, SCP, SFTP, FTP, SYSLOG, SNMP
  • USB port for performing updates, lock front panel, and backup/restore configuration and log files.
  • Antenna connected with up to 300m of standard coaxial cable RG58

LANTIME M100 time servers can be installed to provide accurate time to small and medium sized computer networks. This entry level time server synchronizes all systems either NTP- or SNTP-compatible utilizing a built-in Meinberg GPS radio clock as its primary reference time source.

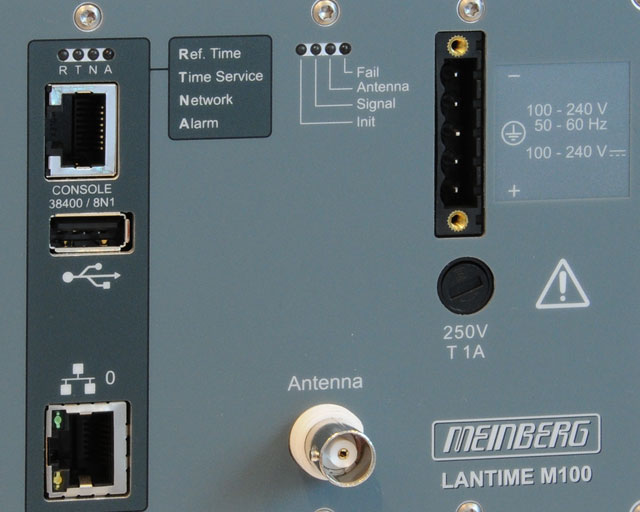

Three LEDs (green/red) indicate the status of the three main components: Reference Time (GPS), Time Synchronization Service (NTP) and Network (Link status). A fourth red LED is labeled ALARM and can be configured to signal any event that is covered by the notification handling routines.

The LANTIME M100/GPS is equipped with a high precision "TCXO" oscillator. The oscillator determines the holdover characteristics (e.g. when the GPS signal is disturbed or jammed).

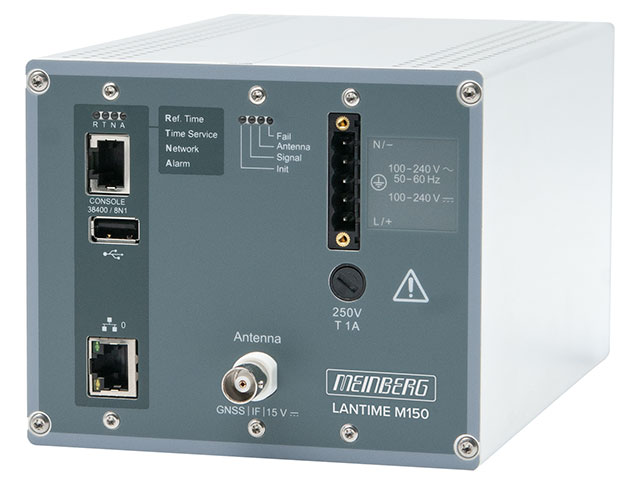

GPS Time Server for Din Rail Mounting

System Components:

  • GPS170 with TCXO
  • Single board computer with Linux operating system
  • Integrated power supply (100 – 240VDC),
    on request we will offer other power supplies
  • Aluminium profile case for 35mm DIN mounting rail,
    125,5 mm wide x 105 mm high x 189 mm deep
