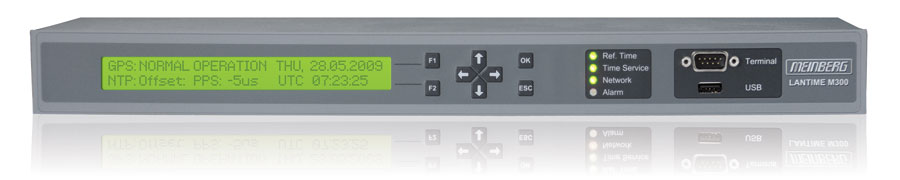

LANTIME M300/MGR:
NTP Time Server with integrated GPS receiver for mobile applications

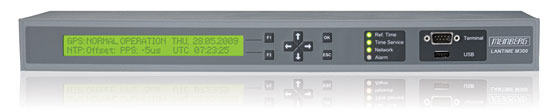

NTP Time Server with integrated high end GPS clock for mobile applications
This Product is replaced by M320/GNS - Stationary and mobile NTP Time Server

Key Features:

  • ยต-Blox GPS receiver module (C/A Codes)
  • Active GPS L1 antenna with 10m coax cable RG58
  • Web based status and configuration interface and console based graphical configuration utility
  • Two independant RJ-45 ethernet interfaces 10/100 MBit
  • Pulse Per Second (PPS), TTL level output
  • 10 MHz frequency output

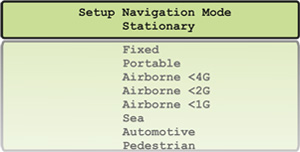

Setup Navigation Mode
The GPS receiver of the MGR board supports different dynamic platform models to adjust the navigation engine to the expected environment. These platform settings can be changed dynamically without doing a power cycle or reset. It allows a better interpretation of the measurements and hence provides a more accurate position output. Setting the receiver to an unsuitable platform model for the application environment may reduce the receiver performance and position accuracy significantly.

High precision Oscillators available
The LANTIME M300/MGR is equipped with a high precision oscillator "TCXO" (look at oscillator options for details) as standard. The oscillator determines the holdover characteristics (e.g. when the GPS signal is disturbed or jammed). For applications with higher accuracy requirements there are several oscillator options available.

Modular system architecture
Because of its modular system architecture it is possible to order a LANTIME M300/MGR time server with several additional frequency-, serial string- and pulse outputs.
