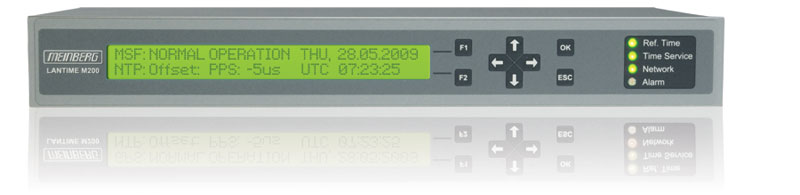

LANTIME M200/MSF:
Compact NTP Time Server with integrated MSF radio clock

Key Features:

• Synchronization of NTP and SNTP compatible clients
• Web based status and configuration interface and console based graphical configuration utility LANTIME Interface - Demo
• Supported networking protocols: IPv4, IPv6, HTTPS, HTTP, SSH, TELNET, SCP, SFTP, FTP, SYSLOG, SNMP
• USB port for performing updates, lock front panel, and backup/restore configuration and log files.
• 60KHz Antenna (cable length up to 300m)

This LANTIME M200 is a set of equipment composed of a reference clock (MSF receiver AM511), a single-board computer with integrated and a power supply unit, all installed in a metal desktop case and ready to operate. The interfaces provided by LANTIME are accessible via connectors in the rear panel of the case.

Details of the components are described below:

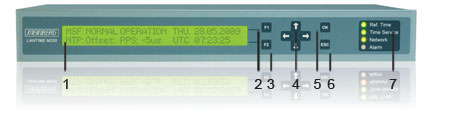

1. LC - Display backlight (2 x 40 chars)
2. F1 button: show help and additional informations
3. F2 button: overview of network parameters
4. 4 arrow buttons: select next menu and change value of parameters
5. OK button: save changes or enter submenu
6. ESC button: cancel menu and one level up
7. Status LEDs
   Referenz time: green: synchronized red: error
   NTP time service: green: synchronized red: error
   Network connection: green: Link red: error
   Alarm: red: error

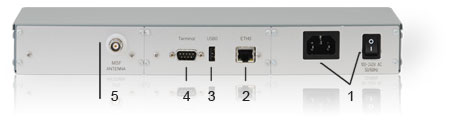

1. Power Supply 85...264 VAC
2. Ethernet Network Connector ETH0
3. USB Connector for USB Stick
4. RS232 Terminal Interface
5. MSF Antenna

The installation of LANTIME is very easy for the system/network administrator. The network address, the netmask and the default gateway have to be configured from the front panel of LANTIME. The network address or the equivalent name of LANTIME has to be shown to all NTP clients in the TCP/IP network.
